    ASME/ANSI B16.5 A105 Carbon Steel Orifice Flange Class 150

    ASME/ANSI B16.5 A105 Class150 Carbon steel orifice flange

    Description


    Carbon steel orifice flange, The connection mode is different from that of ordinary flange. The orifice plate flange is the orifice plate connected to the pipeline by the orifice plate flowmeter. The orifice plate is fixed in the middle by the flanges on both sides, and is led to the differential pressure transmitter through the pressure taking point on the flange to measure the flow.

    Specification


    Size:DN10-DN3000
    Pressure:150LB-2500LB
    Material:ASTM A105/105N; A36
    Wall thickness:STD,SCH40,XS,SCH60,SCH80

    Technical data sheet


    ASME/ANSI B16.5 A105 Class150 Carbon steel orifice flange​ technical data sheet as below:

    Nominal diametersize(mm)
    diameter DD1Bolt hole diameterD2f
    10906014412
    15956514462
    201057516562
    251158516653
    3214010018763
    4015011018843
    5016512520993
    65185145201183
    80200160221323

    Characteristic


    Carbon steel orifice flange shall ensure that the center of orifice plate, flange center, pipe center and gasket are concentric, and the different centrality shall not exceed 0.002d/ β, The positive and negative pressure direction of the orifice plate shall be consistent with the flow direction of the medium.

    Application


    Carbon steel orifice flange is a component of orifice flowmeter, which appears in pairs. The material flow can be calculated according to the formula by using the pressure difference on both sides of the flow orifice.

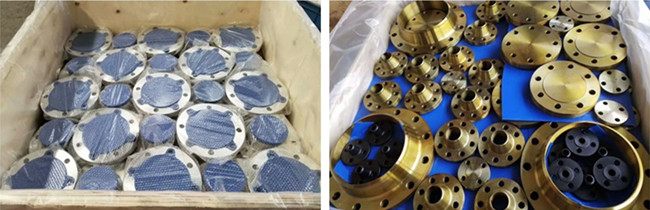

    Packing & Delivery
